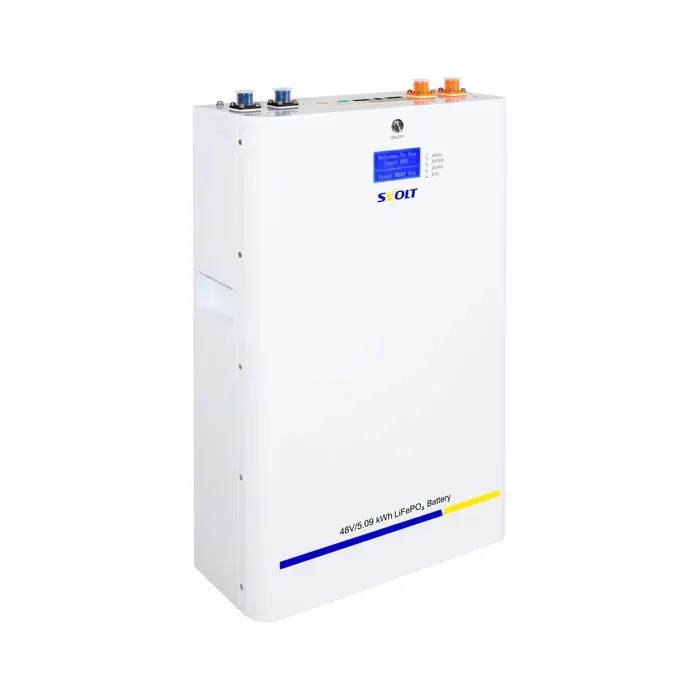

SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery

The SVOLT 48V 106AH 5.09Kwh A-Grade Lithium Battery, manufactured by SVOLT in collaboration with Haval groups, offers exceptional performance and reliability. With A-Grade battery cells and advanced technology, this maintenance-free battery is ideal for various applications, including solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems. Its rack-mounted installation type and compact design make it suitable for industrial, residential, commercial, and private use.

Specifications :

• Energy:5.09kWh
• Installation Type: Wall Mounted
• Battery type-Chemistry: LiFePO4
• Nominal Voltage:48V
• Nominal Capacity :106Ah
• Energy Density:5427 KWh
• Dimensions(LxWxH) :688 x 447 x 211mm
• Weight (Approx.):49.5KGS
• Terminal Type: M6
• Terminal Torque:8.5NM
• Case Material: SPCC
• BMS build-in: Yes
• Internal Resistance:<30mO
• Efficiency – round trip:99%
• Self Discharge per Month:<3%
• Max parallel connectors:16Pcs
• Series connections:Not Allowed
• Cycle life (0.2C, 25°C@80% DOD) Discharge Temperature:6000 Cycles
• Charge Temperature :20° C to 65°
• Storage Temperature :0C to 50° C
• Bluetooth(App) :Optional
• LCD Screen: Optional
• Heating Function: Optional
• Voltage Window: Optional
• Recommend Charge Voltage:43.2V-58.4V
• Max Charge Voltage:57.6±0.20V
• Recommend Charge current:58.4±0.20V
• Max Discharging Voltage:43.2±0.20V
• Max Continuous Discharge Current :100A
• Peak Discharge Current:150A

Features :

• Manufactured by SVOLT in collaboration with Haval groups, known for their excellence in vehicles
• A-Grade lithium battery cells for superior performance and reliability
• Designed for environmentally sensitive areas and committed to recycling
• Widely used in industrial, residential, commercial, and private applications
• Maintenance-free construction for convenience
• Suitable for solar and renewable energy storage, electric vehicles, industrial equipment, medical devices, telecommunications, TVs, and UPS systems
• Built-in Battery Management System (BMS) for efficient monitoring and protection
• High energy efficiency with a round trip efficiency of 99%
• Low self-discharge rate of less than 3% per month
• Compact and lightweight design for easy handling
• Optional features include Bluetooth (App), LCD screen, heating function, and voltage window
• Wide temperature range of operation and storage
• Warranty: 5 years

What’s In the Box :

• 1 x SVOLT 48V 106Ah 5.09kw A-Grade Lithium Battery
• 1 x Red (Positive) Battery Cable
• 1 x Black (Negative) Battery Cable
• 1 x Ethernet cable
• 1 x Manual
