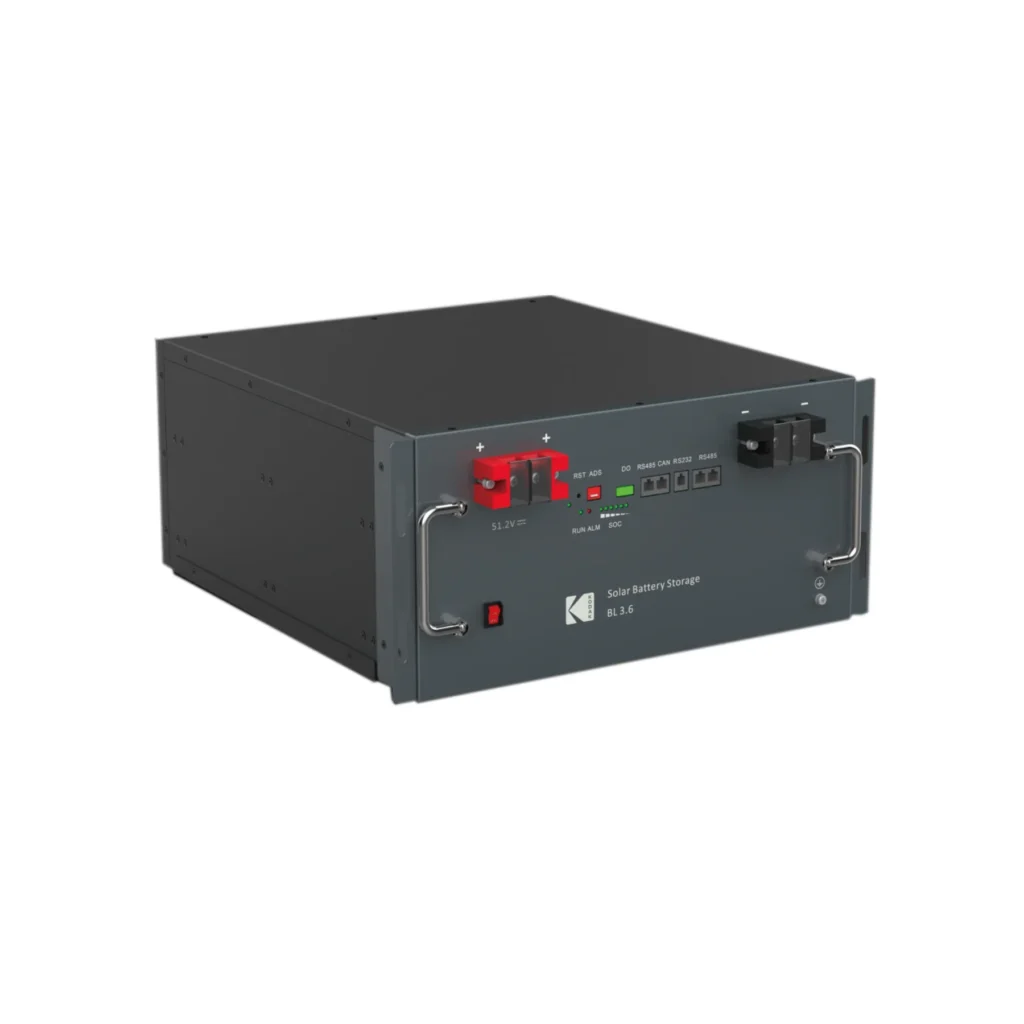

Kodak BL3.6 3.68kWh 48V Lithium Battery

The BL3.6 Kodak battery is a high performance, 3.68kWh,  scalable battery module perfect for expanding systems. A Single BL3.6 battery module allows up to 5000W of continuous discharge power. This means only one BL3.6 battery module is required for a 5kW inverter or only two required for a 10kW inverter.

The battery has up to 6000+ cycles depending on the DoD of the battery.

• 1.5 C industry leading C- rating allows single battery deployments for 5kW inverter systems
• 3.686 kWhrs capable of 15 units in parallel totalling 55.29 kWhrs
• RS485 and CAN communication ensures full compatibility with KODAK and Sunsynk
• Industry leading 95% DOD allowing for more useable capacity from the battery
• 10 year standard warranty

Due to the high discharge power of the BL3.6 Kodak battery, it is highly recommended to use bus bars for the battery connections.

Features:

• Overvoltage protection
• Undervoltage protection
• Short-circuit protection
• Low temperature charge protection
• High temperature charge protection
• High temperature discharge protection
• Low temperature discharge protection
• Charge over-current protection
• Discharge over-current protection
• Dormancy function
• RS232 / RS485 / CAN communication
• Warranty: 10 year warranty, >6000 life cycles

Specifications:

• Rated Power: 5000W
• Parallel capability: up to 15 units
• Rated voltage: 51.2V/72Ah
• Nominal capacity: 3.686kWh
• Dimensions (mm): 222 x 442 x 512
• Net weight: 42Kg
• Communication Interface: RS232 / RS485 / CAN

Electrical Parameters:

• Charge mode: CC / CV / CP
• Charging current: 50A (0.5C @25°C)
• Charging cut-off voltage : 58.4V (3650mV for cell)
• Discharge mode: CC / CP
• Discharging cut-off voltage: 40.0V (2500mV for cell)
• Discharge current: 115A (continuous)

Environment:

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: Charge: 0~+50°C / Discharge: -20~+55°C
• Storage Temperature: -20~45°C (3 months) /-20~+25°C (1 year)
• Shipment status: Voltage: 52V~54V SOC: 60%~80%
