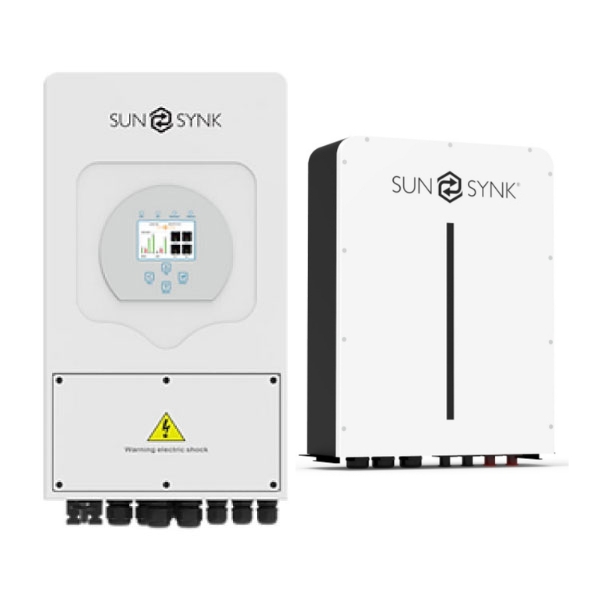

SUNSYNK 5kW Inverter & Battery Combo Deal – 1 X SUNSYNK 5kW Inverter & 1 X 5kW 100Ah 51.2V Lithium Ion Batteries

• SUNSYNK 5kW Inverter & Battery Combo Deal – 1 X SUNSYNK 5kW Inverter & 1 X 5kW 100Ah 51.2V Lithium Ion Batteries
• Whats Included:
  • 1 X SUNSYNK 5kW Hybrid Parity Inverter (1 Phase) – SUNSYNK-5K-SG02LP1
  • 1 x SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery – SUNSYNK-L5.1-IP20

More Details:

• SUNSYNK 5kW Hybrid Parity Inverter (1 Phase)
  • Model SUNSYNK-5K-SG02LP1
  • Wi-Fi Ready – works via Sunsynk App.
  • Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
  • The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
  • Manages Power Flow from multiple sources such as Solar, Main Electrical Grids & Generator, then effectively storing & releasing electric power as the utilities require.
  • Easy & Simple to Understand Display.
  • Wi-Fi & GSM monitoring supported.
  • Equipped with Visual power flow screen.
  • Built-In 2 strings of MPP trackers.
  • Smart settable 3-stage MPPT charging – optimized battery performance.
  • Auxiliary load function.
  • Parallel/multi invert function grid-tied & off-grid.
  • 220V Single Phase, Pure Sinewave Inverter.
  • Grid Type: Split Phase, 2/3 Phase, Single Phase
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge & Discharge Current: 120A
  • Battery Charging Strategy: Self-Adaptation to BMS
  • Maximum DC Input Power: 6500W
  • MPPT Range: 125-425V
  • Start-up Voltage: 150V
  • AC Output & UPS Power: 5000W
  • Maximum AC Power: 5500W
  • AC Output Rated Current: 20.8A
  • Maximum AC Output Current: 24A
  • Maximum Efficiency: 97.60%
  • MPPT Efficiency: 96.50%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Fan Cooling
  • Operation Temperature: -25°C to 60°C
  • Installation Type: Wall Mounted.
  • Maximum Altitude: 4000m
  • Weight: 32Kg
  • Dimensions (L x W x H): 670 x 420 x 233 mm
  • 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery).
  • Recommended Solar Panel Configuration:
    • Min 3 Panels – Max 14 Panels (Panel Size: 180W to 480W Panels) (7 Panels per MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
• SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery
  • Model SUNSYNK-L5.1-IP20
  • Convenient Quick Installation.
  • Safe & Reliable.
  • Eco-Friendly.
  • Flexible Configuration.
  • Equipped with Intelligent BMS.
  • Wide Temperature.
  • Nominal Capacity: 100Ah
  • Nominal Voltage: 51.2V
  • Operating Voltage: 4.61V
  • Energy: 5.12kWh
  • Usable Energy: 4.61kWh
  • Recommended Charge/Discharge Current: 50A
  • Maximum Charge/Discharge Current: 100A
  • Peak Charge/Discharge Current (2mins, 25°): 150A
  • IP Rating of Enclosure: IP20
  • Working Temperature: 0-55°C (Charge); -20-55°C (Discharge)
  • Storage Temperature: 0-35°C
  • Altitude: ≤2000m
  • Communication Port: CAN2.0; RS485
  • Installation Type: Wall Mounted or 19-inch Standard Cabinet
  • Weight: 50Kg
  • Dimensions (W x D x H): 440 x 640 x 140 mm
  • 5 Year Limited Product Warranty.
• Does Not Include Power Cables & Communication Cables (Sold Separately)
• Refer To Brochure For Detailed Product Specifications.
• Product might vary from depicted images.
• Graphics are for illustrative purposes only.
• Free Delivery Nationwide – South Africa
