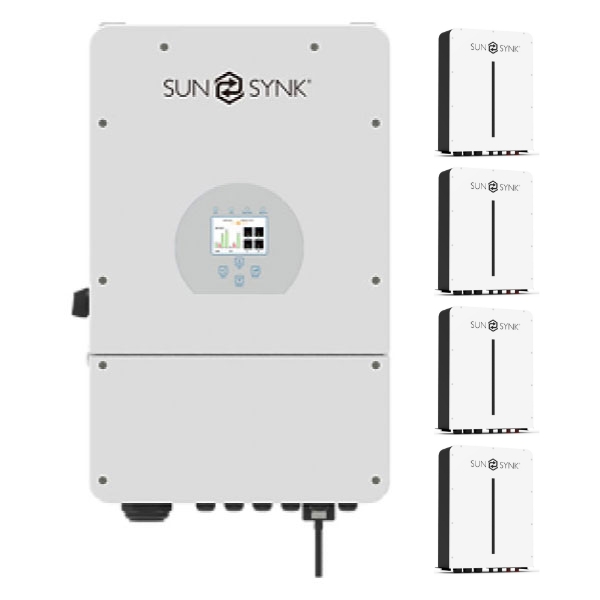

Sunsynk 16kW Inverter & Battery Combo Deal – 1 X Sunsynk 16kW Inverter & 4 X Sunsynk 5kW 100Ah 51.2V Lithium Ion Batteries
Whats Included:
1 x SUNSYNK 16kW Hybrid Inverter (1 Phase) – SUNSYNK MAX
4 x SUNSYNK 5kW 100Ah LiFePo4 Lithium Ion Battery – SUNSYNK-L5.1-IP20
More Details:
Sunsynk 16kW Hybrid Inverter (1 Phase)
Model SUNSYNK MAX
Wi-Fi Ready – works via Sunsynk App.
Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
The Most Powerful Low-voltage Inverter In The World.
Achieves a Maximum Output Power of 16kW & Battery Charge Current of 300A
Manages Power-flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
Colourful Touch LCD
Storing energy from diesel generator supported.
Wi-Fi & GSM monitoring supported.
Equipped with Visual power flow screen.
Parallel/multi invert function grid-tied & off-grid.
Grid Type: Single-Phase.
Protection Degree: IP65
Noise Level: <30dB
Maximum Charge & Discharge Current: 300A
Battery Charging Strategy: Self-Adaptation to BMS
Maximum DC Input Power: 18000W
MPPT Range: 250-450V
Start-up Voltage: 150V
Maximum On-Grid AC Power: 16000W
Maximum Off-Grid AC Power: 13000W
AC Output Rated Current: 65A
Maximum AC Current: 70A
Frequency Range: 45-55Hz
Voltage Range: 211-264V
Maximum Efficiency: 97.60%
MPPT Efficiency: 99.90%
Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
Battery Voltage Range: 43-60V
Communication with BMS: CAN/RS485
Fan Cooling
Operation Temperature: -25°C to 55°C
Installation Type: Wall Mounted.
Weight: 34.5Kg
Dimensions (W x H x D): 422 x 702 x 281 mm
5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery).
Recommended Solar Panel Configuration:
Min 5 Panels – Max 24 Panels (Refer to breakdown below for Panel set up per MPPT)
First MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on first MPPT)
Second MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on second MPPT)
Third MPPT: Min 5 Panels – Max 8 Panels (Panel Size: 220W to 560W Panels) (Up to 8 Panels on third MPPT)
Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
Sunsynk 5kW 100Ah LiFePo4 Lithium Ion Battery
Model SUNSYNK-L5.1-IP20
Convenient Quick Installation.
Safe & Reliable.
Eco-Friendly.
Flexible Configuration.
Equipped with Intelligent BMS.
Wide Temperature.
Nominal Capacity: 100Ah
Nominal Voltage: 51.2V
Operating Voltage: 4.61V
Energy: 5.12kWh
Usable Energy: 4.61kWh
Recommended Charge/Discharge Current: 50A
Maximum Charge/Discharge Current: 100A
Peak Charge/Discharge Current (2mins, 25°): 150A
IP Rating of Enclosure: IP20
Working Temperature: 0-55°C (Charge); -20-55°C (Discharge)
Storage Temperature: 0-35°C
Altitude: ≤2000m
Communication Port: CAN2.0; RS485
Installation Type: Wall Mounted or 19-inch Standard Cabinet
Weight: 50Kg
Dimensions (W x D x H): 440 x 640 x 140 mm
5 Year Limited Product Warranty.
Does Not Include Power Cables & Communication Cables (Sold Separately)
Refer To Brochure For Detailed Product Specifications.
