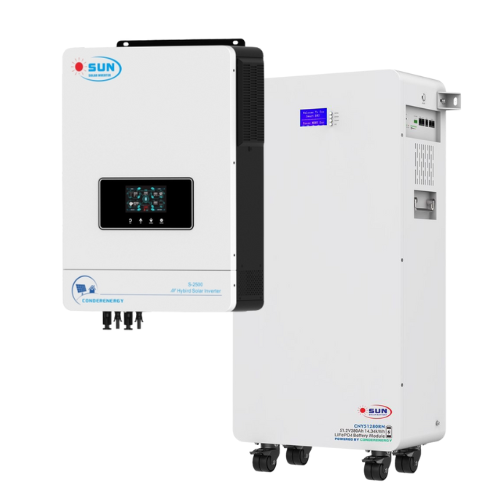

Sun Backup System – 10.2kw inverter and 14.34KWH Lithium Battery Combo
Introducing the Sun Backup System which includes a 10.2kw inverter and a 14.34KWH Lithium Battery, the perfect backup system for your home or office power needs.
Inverter –
SUN 10.2kw Hybrid Solar Inverter 2 MPPT (S-2500)
This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
Pure sine wave solar inverter (on / off Grid)
Output power factor 1.0
Wi-Fi & GPRS available for IOS & Android
Inverter can run without battery
One-key restoration to factory settings
Dual communication ports for battery communication & Wi-Fi communication
Built-in 160A MPPT Solar Charger
High PV input voltage range (90-500VDC)
Built-in anti-dust kit for harsh environments
Smart battery charge design to optimize battery life
Dual output
Dual PV input
Touch button
On/Off grid work mode
Specifications:
2X PV INPUTS:
Max. PV Array Open Circuit Voltage 500Vdc
PV Array MPPT Voltage Range 90Vdc~450Vdc
Max. PV Array Power
PV1 Channel 5400W
PV2 Channel 5400W
GRID/AC OUTPUT:
Nominal Output Voltage: 220/230/240Vac
Nominal Output Current: 44.3A
Power Factor Range: >0.99
Maximum Conversion Efficiency (DC/AC): 98%
Nominal Operating Frequency: 50/60Hz
TWO LOAD OUTPUT POWER:
Full Load 10200W
Maximum Main Load 10200W
Maximum Second Load 3400W
Size:
Dimensions: 530 X 420 X 160
Weight: 15Kg
What’s in the box?
1 x Inverter
1 x User Manual
