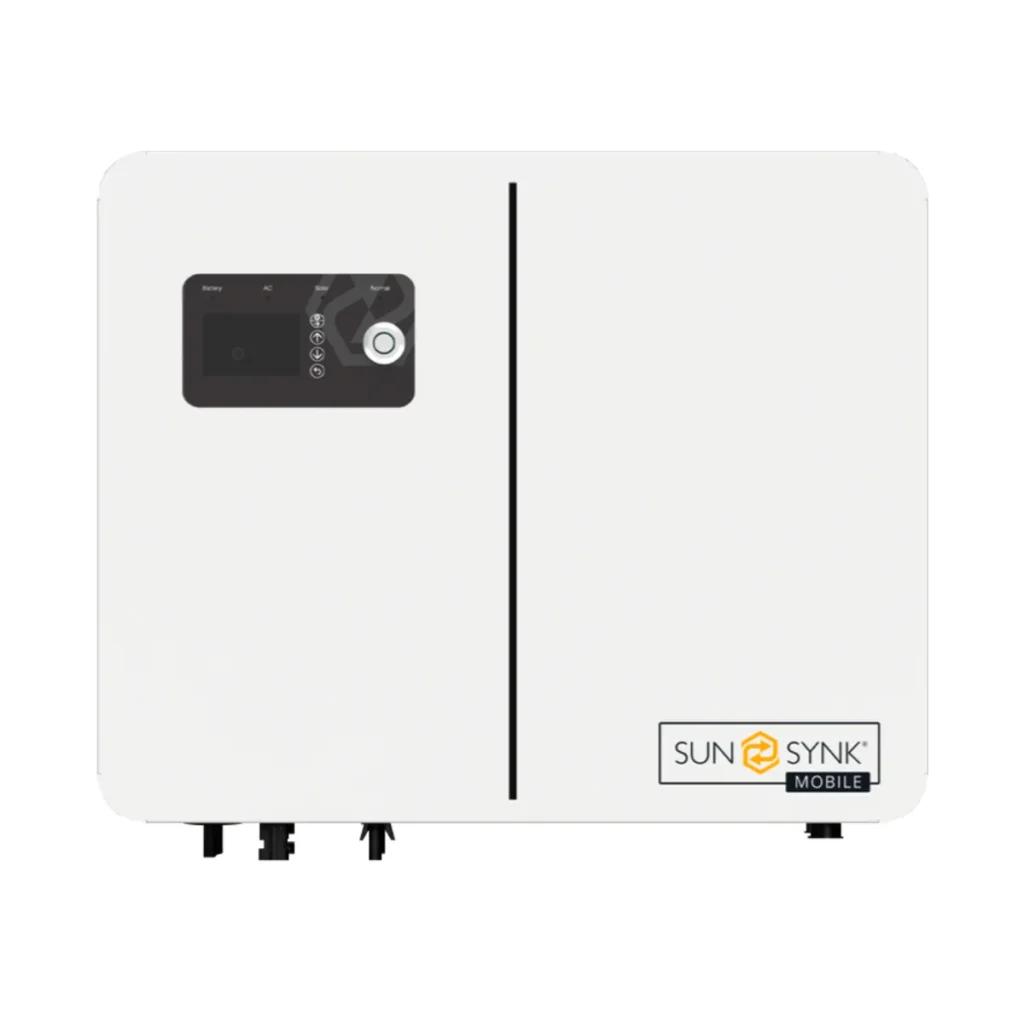

Introducing the Powerlynk Lynks 6kW, for the times where you need flexibility and value of a Powerlynk, but not necessarily the integrated storage.
The Powerlynk Lynks works with conventional PVs and micro inverters, providing versatility for various scenarios. It delivers robust power, meeting diverse energy needs efficiently.
Twin MPPT technology maximises solar energy harvest by adjusting output to match peak panel efficiency throughout the day. Compatible with all Sunsynk low-voltage batteries, the Sunsynk Mobile Lynks offer flexible battery options to suit your needs.
Add a Sunsynk Data Logger to the inverter to manage energy use and reduce reliance on traditional sources, simplifying solar energy management.
Battery Input Parameters
- Supported Battery Type: Li-Ion or Lead-acid
- Nominal Battery Voltage: 48V
- Battery Input Voltage Range: 40-60V
- Max. Charge Voltage: ≤60V (Configurable)
- Max. Charge Current: 100A (Configurable)
- Max. Discharge Current: 130A (Configurable)
- Battery Capacity (Recommended): 100-2000Ah
- Charge for Li-Ion Battery Pack: Communicating with BMS of Battery Pack
PV String Input Parameters
- Max. DC Input Power: 4000W x 2 = 8000W
- DC Input Voltage: 500V
- MPPT Voltage Range: 120-450V
- Start-Up Voltage: 150V
- Max. Input Current: 15 x 2 = 30A (2 MPPT Channels)
AC Output Parameters (Back-Up)(Feed to Essential Load)
- Max. Output Power: 6000W
- Max. Output Apparent Power: 6000VA
- Peak Output Apparent Power: 12000VA
- Max. Output Current: 26A
- Nominal Output Voltage: 220/230/240Vac Single-Phase (Configurable)
- Nominal Output Frequency: 50/60Hz (+/-0.2%) (Configurable)
- Max. Bypass Current: 40A
- Shift Time (Bypass and Inverter): 10ms
- Output THDv (Resistor Load): <3%
AC Input Parameter (On-Grid) (Bypass to Essential Load & Charge the Battery/Feed to Home Load)
- Max. Input Power: 6000W
- Max. Output Power (Feed to Home Load): 6000W
- Max. Apparent Input Power: 6000VA
- Max. Apparent Output Power: 6000VA
- Nominal Input/Output Voltage: 220/230/240Vac (Auto Adjusted to Fit Home Grid)
- Nominal Input/Output Frequency: 50/60Hz (Auto Adjusted to Fit Home Grid)
- Max. Bypass Current: 40A
- Shift Time (Bypass and Inverter): 10ms
Efficiency
- Max. Efficiency: 97.6%
- Max. Battery to Load Efficiency: 94.0%
- Europe Efficiency: 97.0%
- MPPT Efficiency: 99.9%
Protection
Integrated:
- Battery Over-Charge Protection
- Battery Low-Voltage Protection
- Over-Temperature Protection
- Output Overload Protection
- Output Short Circuit Protection
