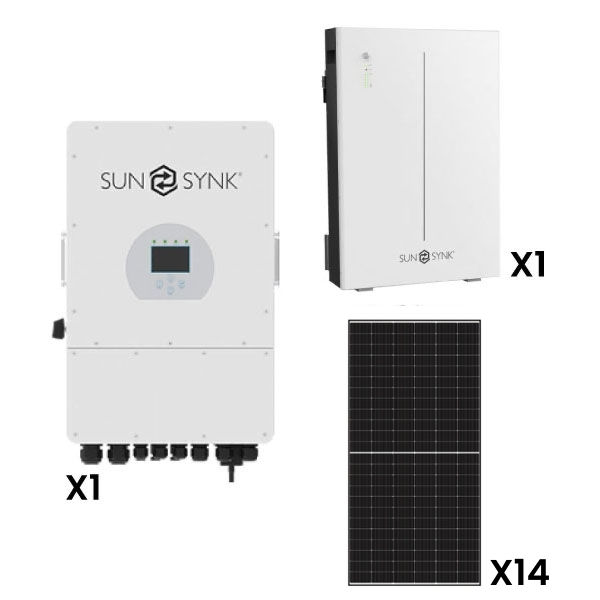

Sunsynk 12kW Solar, Inverter & Battery Combo Deal – 1 X Sunsynk 12kW Inverter, 1 X 10kW Sunsynk Lithium Ion Battery & 14 X Sunova 585W Solar Panels

• Sunsynk 12kW Solar, Inverter & Battery Combo Deal – 1 X Sunsynk 12kW Inverter, 1 X 10kW Sunsynk Lithium Ion Battery & 14 X Sunova 585W Solar Panels
• Whats Included:
  • 14 x Sunova Solar 585W 144 Cell Tangra™ M Solar Panel – SS-585-72MDH(T)
  • 1 x SUNSYNK 12kW Hybrid Inverter (3 Phase) – SUN-12K-SG04LP3
  • 1 x SUNSYNK 10kW 200Ah LiFePo4 Lithium Ion Battery – SUN-BATT-10.24

More Details:

• Sunova Solar 585W 144 Cell Tangra™ M Solar Panel
  • Model SS-585-72MDH(T)
  • Half-Cut Cell Technology – Divides panel in half, allowing top & bottom to run independently generating more energy even when half is shaded.
  • Combines creative technology effectively & extremely improves the module efficiency & power output.
  • 585W Solar Panel.
  • Equipped with 144 Cells.
  • 30 Year Lifespan Delivers 10-30% More Power compared with Conventional P-Type Modules.
  • The Natural Lack of LID in the N-Type Solar Cell can Increase Power Generation.
  • Excellent Low Irradiance Performance.
  • Better Light Trapping and Current Collection to Improve Module Power Output and Reliability.
  • Industry-Leading, Lowest Thermal Coefficient.
  • Optimized Electrical Design and Lower Operating Current for Reduced Hot Spot Loss and Better Temperature.
  • Certified to withstand 2400 Pa of Wind Load and 5400 Pa of Snow Load.
  • 100% Triple EL Test, Which Greatly Reduces the Hidden Cracks Rate.
  • Number of Cells: 144 Cells
  • Cell Type: N-Type Monocrystalline.
  • Glass: Tempered, 3.2mm AR, High Transmittance, Low Iron.
  • Silver/Black Anodized Aluminium Alloy Frame.
  • Junction Box: IP68, 3 Bypass Diodes.
  • Connector: MC4 Compatible.
  • Mechanical Load: Wind Load: 5400 Pa; Wind Load: 2400 Pa
  • Maximum Power: 585W (STC) & 436W (NOCT)
  • Open-Circuit Voltage: 52.09V (STC) & 49.17V (NOCT)
  • Short-Circuit Current: 13.68A (STC) & 11.05A (NOCT)
  • Maximum Power Voltage: 44.61V (STC) & 41.76V (NOCT)
  • Maximum Power Current: 13.12A (STC) & 10.44A (NOCT)
  • Module Efficiency: 22.60%
  • Power Tolerance: 0,+5W
  • Maximum System Voltage: 1500V
  • Maximum Rated Fuse Current: 25A
  • Current Operating Temperature: -40°C to 85°C
  • Comprehensive Certificates: ISO 9001/ISO 14001/ISO 45001/SA 8000
  • Weight: 27.2Kg
  • Dimensions (L x W x H): 2278 x 1134 x 30 mm
  • Mounting Kits & Accessories Not Included – Sold Separately.
  • 15 Year Limited Product Warranty. T & C’s Apply
• SUNSYNK 12kW Hybrid Inverter
  • Model SUN-12K-SG04LP3
  • Wi-Fi Ready – works via Sunsynk App.
  • Complete with Wi-Fi Dongle for Remote Monitoring & Changing Parameter via App.
  • The Synsynk Hybrid Parity Inverter is a Highly Efficient Power Management Tool.
  • Manages Power Flow from multiple sources such as Solar, Main Power (Grid) & Generators, then effectively storing & releasing power as & when utilities require.
  • Easy & Simple to Understand LCD Display.
  • Wi-Fi & GSM monitoring supported.
  • Equipped with Visual power flow screen.
  • Built-In 2 strings for 1 MPP tracker & 1 string for 1 MPP tracker.
  • Smart settable 3-stage MPPT charging – optimised battery performance.
  • Auxiliary load function.
  • Parallel (coming soon)/multi-inverter function – grid-tied & off-grid.
  • 230V/400V Three-Phase Pure Sinewave Inverter.
  • Grid Type: Three Phase.
  • Protection Degree: IP65
  • Noise Level: <30dB
  • Maximum Charge & Discharge Current: 240A
  • Battery Charging Strategy: Self-Adaptation to BMS
  • Maximum DC Input Power: 15000W
  • MPPT Range: 140-800V
  • Start-up Voltage: 160V
  • AC Output & UPS Power: 12000W
  • Maximum AC Power: 13200W
  • AC Output Rated Current: 17.4A
  • Maximum AC Output Current: 19.1A
  • Maximum Efficiency: 97.60%
  • MPPT Efficiency: 97.0%
  • Battery Type: Lead-acid or Lithium-ion (Not Included – Sold Separately)
  • Battery Voltage Range: 40-60V
  • Communication with BMS: CAN/RS485
  • Fan Cooling
  • Operation Temperature: -25°C to 60°C
  • Installation Type: Wall Mounted.
  • Weight: 45Kg
  • Dimensions (L x W x H): 673 x 462 x 265 mm
  • 5 Year Product Warranty (Extended to 10 Years if paired with Sunsynk Battery). T & C’s Apply
  • Recommended Solar Panel Configuration:
    • Min 3 Panels – Max 28 Panels (Refer to breakdown below for Panel set up per MPPT)
    • First MPPT: Min 3 Panels – Max 14 Panels (Panel Size: 220W to 560W Panels) (Up to 14 Panels on first MPPT)
    • Second MPPT: Min 3 Panels – Max 14 Panels (Panel Size: 220W to 480W Panels) (Up to 14 Panels on second MPPT)
    • Based off Seraphim, Raystech, JINKO, JA Solar & GSun Solar Panel Specifications
• SUNSYNK 10kW 200Ah LiFePo4 Lithium Ion Battery
  • Model SUN-BATT-10.24
  • Self Consumption.
  • Energy Independence.
  • More Usable Energy.
  • Flexible Investment.
  • Safe & Reliable.
  • Easy Installation.
  • High Energy Density.
  • Perfect Compatibility.
  • Display: SOC Status & LED Indicator
  • Scalability: Max 8 Batteries in Parallel
  • Nominal Voltage: 51.2V
  • Nominal Capacity: 200Ah
  • Battery Energy: 10240Wh
  • Charge Voltage: 55.68-56.16Vdc
  • Discharge Voltage: 45.6-56.16Vdc
  • Nominal Charge & Discharge Current: 100A
  • Maximum Charge & Discharge Current: 200A
  • Nominal Charge & Discharge Power: 5000W
  • Maximum Charge & Discharge Power: 10000W
  • Short Circuit Current: 540A
  • IP20
  • IP Rating: ≤2000m
  • Storage Temperature: ≤25°C (12 months); ≤35°C (6 months); ≤45°C (3 months)
  • Cycle Life: 6000 Cycles @ 80% DOD/25°C/0.5C, 60% EOL
  • Installation Type: Floor Stand or Wall Mounted.
  • Weight: 92Kg
  • Dimensions (W x D x H): 550 x 160 x 836 mm
  • 5 Year Limited Product Warranty
