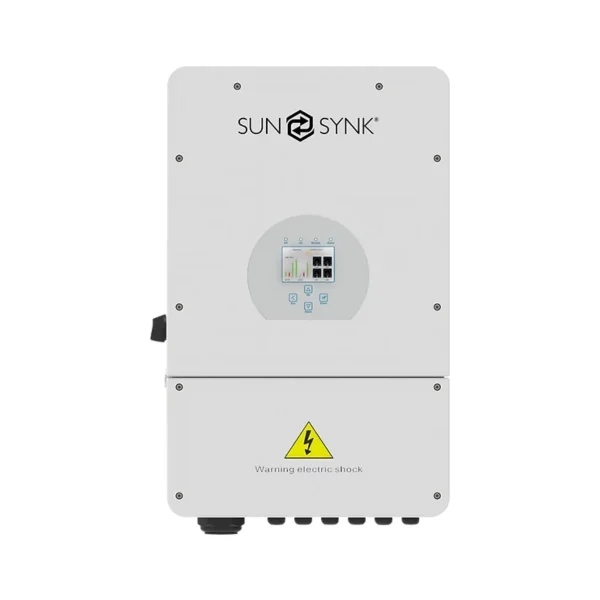

SunSynk 10KW 48V Single Phase Hybrid Inverter

The SunSynk 10KW 48V Single Phase Hybrid Inverter is a highly efficient power management tool that allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require.

Applications

• Marine (vessel power management).
• Power shedding (home/office/factory).
• UPS (fuel-saving systems).
• Remote locations with solar and wind generators.
• Building sites.
• Telecommunication.

Technical Specifications Battery Input Data

• Battery Type: Lead-acid or Lithium-ion.
• Battery Voltage Range: 40~60V.
• Max. Charging Current: 220A.
• Max. Discharging Current: 220A.
• Charging Curve: 3 Stages/Equalization.
• Charging Strategy for Li-Ion: Battery Self-adaption to BMS.

PV String Input Data

• Max. DC Input Power: 13000W.
• PV Input Voltage: 370V (125V~500)
• Start-up Voltage: 125V
• MPPT Range: 150V~425V.
• Full Load Dc Voltage Range: 200V-425V
• PV Input Current: 26A+26A+26A+
• Max. PV Isc:44A+44A+44A
• No. of Strings Per MPPT Tracker: 3 / 2+2+2

AC Output Data

• Rated AC Output and UPS Power: 10000W.
• Max. AC Power: 11000W.
• AC Output Rated Current: 45.5/43.5A
• Max AC Output Current: 50/47.9A
• Max Continuous AC Passthrough: 70A.
• Peak Power (Off Grid): 2 Time of Rated Power, 10 S
• Power Factor Adjustment Range:0.8 Leading to 0.8 Lagging
• Power Factor: 1
• Output Frequency and Voltage: 50 / 60Hz; L/N/PE 220/230Vac
• Grid Type: Split Phase; 2/3 phase, Single Phase
• Total Harmonics Current Distortion (THDi):<3% (of nominal power)
• Current Harmonic Distortion: THD<3% (Linear load<1.5%).
• DC Current Injection:<0.5% In

Efficiency

• Max. Efficiency: 97.6%.
• MPPT Efficiency: 97.0%.
• Euro Efficiency: 99.9%.

Protection

• Integrated: Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current
• Protection, Output Shorted Protection, Surge Protection
• Over Voltage Category: DC Type II/AC Type III

Certifications and Standards:

• Grid Regulation: VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
• Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data

• Operating Temperature Range -40~60°C, >45°C Derating.
• Cooling: Smart Cooling
• Noise: ≤30 dB
• Communication with BMS RS485; CAN.
• Weight: 32kg.
• Size: 420W×670H×233D mm (Excluding connectors and brackets)
• Protection Degree: IP65.
• Installation Style: Wall-mounted.
• Warranty: 5 years.
