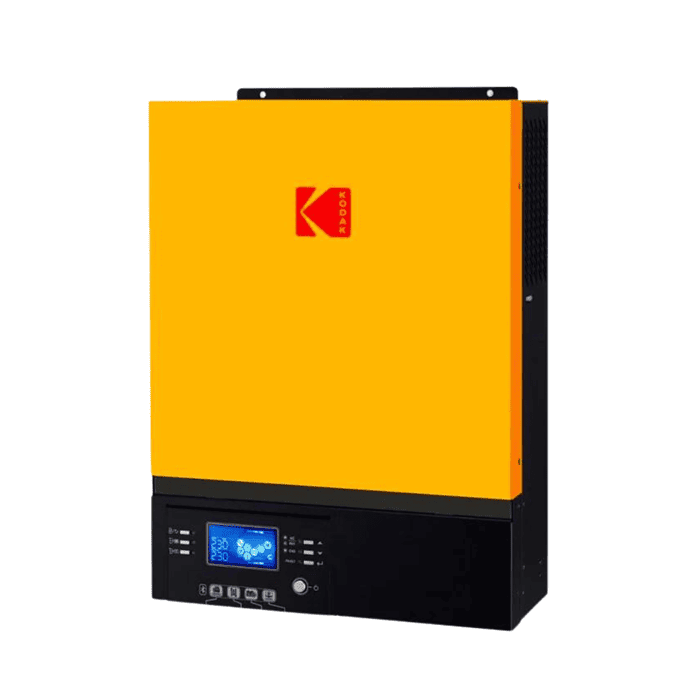

Kodak VMIII 3kW 24V Solar Off-Grid Inverter

Features

• Removable LCD control module with multiple communications servers and ATM.
• Built-in Bluetooth for mobile monitoring (Android App is available).
• Replaceable fan design for ease of maintenance.
• Supply load from Grid or PV, even battery is not available.
• Configurable AC/PV output usage timer and prioritization.
• Selectable high-power charging current.
• Selectable input voltage range for home appliances and personal computers.
• Compatible to Utility Mains or generator input.
• Auto restart while AC is recovering.
• Cold start function.

Technical Data

• Model: OG 3.24.
• Rated Power: 3000VA/3000W.
• Parallel: No

Input

• Voltage: 230 VAC.
• Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
• Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

• AC Voltage Regulation (Batt. Mode: 230VAC ± 5%.
• Surge Power: 6000VA.
• Efficiency (Peak): 93%.
• Transfer Time: 15 ms (For Personal Computers); 20 ms (For Home Appliances).
• Waveform: Pure sine wave.

Battery

• Battery Voltage: 24 VDC.
• Floating Charge Voltage: 27 VDC.
• Overcharge Protection: 33 VDC.

Solar Charger & AC Charger

• Solar Charger Type: MPPT.
• Maximum PV Array Power: 4000 W.
• MPP Range @ Operating Voltage: 120 VDC ~ 430 VDC.
• Maximum PV Array Open Circuit Voltage: 500 VDC.
• Maximum Solar Charge Current: 80 A.
• Maximum AC Charge Current: 60 A.
• Maximum Charge Current: 80 A.

Physical

• Dimension, D x W x H (mm): 115 x 300 x 400.
• Net Weight (kgs): 9.
• Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.

Included in box

• Inverter x 1
• User manual x 1
• RS232 Communication cable x 1
• Software CD x 1
• DC Fuse x 1
