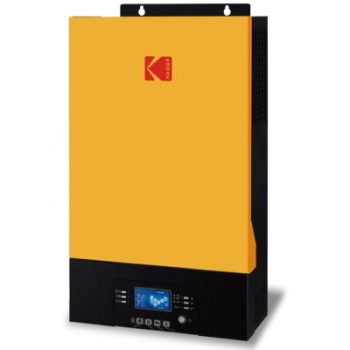

Kodak King 5kW 48V Solar Off-Grid Inverter with UPS

In rural or end-of-line locations, the AC grid voltage can fluctuate across a wide range. Voltage that is sufficiently far from the nominal 230V can cause appliances to run much less efficiently or make them unable to function. Most other inverters that can run in Island Mode simply pass through the variable grid voltage and only produce a smooth 230V supply in the event of a grid failure.

Features

• Built-in Bluetooth for mobile monitoring Detachable LCD control module with multiple communications (Android App is available).
• Supports USB On-the-Go function.
• Reserved communication port for BMS (RS485, CAN-BUS or RS232).
• Configurable AC/PV output usage timer and prioritization.
• Parallel operation up to 9 units.
• Robust UPS (uninterrupted power supply) for essential loads with zero transfer time.

Technical Data

• Model: OG-Plus 5.48.
• Rated Power: 5000VA/5000W.

Input

• Voltage: 230 VAC.
• Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
• Frequency Range: 50 Hz/60 Hz (Auto sensing).
• Power Factor: ≧ 0.98 @ Nominal Voltage (100% Load).
• THDi: ≦ 10%.

Output

• AC Voltage Regulation (Batt. Mode: 230VAC ± 5%.
• Frequency Range (Synchronized Range): 46~54 Hz or 56~64 Hz.
• Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz.
• Harmonic Distortion: ≦ 3 % THD (Linear Load); ≦ 5 % THD (Non-linear Load).
• Transfer Time: 0 ms (AC Mode to Batt. Mode); 4 ms (Inverter to Bypass).
• Waveform: Pure sine wave.

Battery

• Battery Voltage: 40 – 64VDC.
• Floating Charge Voltage: 54 VDC.
• Overcharge Protection: 66 VDC.

Solar Charger & AC Charger

• Solar Charger Type: MPPT.
• Maximum PV Array Power: 4000 W.
• MPP Range @ Operating Voltage: 60 VDC ~ 115 VDC.
• Maximum PV Array Open Circuit Voltage: 145 VDC.
• Maximum Solar Charge Current: 60 A.
• Maximum AC Charge Current: 60 A..

Physical

• Dimension, D x W x H (mm): 140 x 303 x 525.
• Net Weight (kgs): 13.5.
• Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.
• Warranty: 3 years
