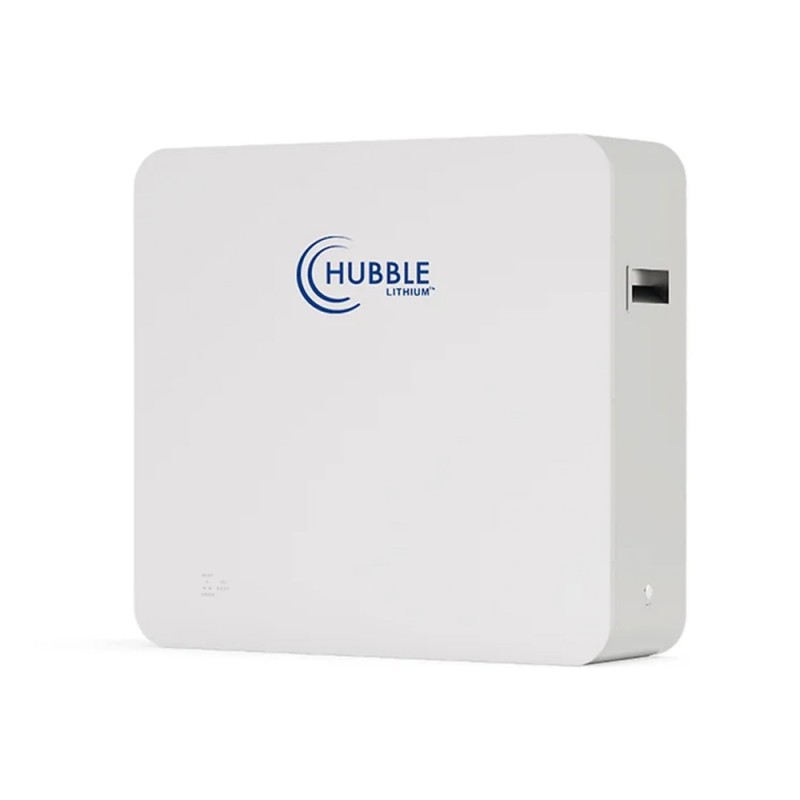

Hubble Lithium AM-10+ PLUS 10kWh 51.2V LifePO4 Battery – 10 Year UNLIMITED Cycles Warranty- with CLOUDLINK

Features

• Low self discharge
• High cycle and service life
• Easy wall mount or shelf rack installation
• Excellent high temperature performance
• 1C High performance lithium battery
• Advanced BMS with current limiting function Compatible with most inverters and chargers
• High energy density and conversion efficiency
• Complete with integrated Battery Management System Hubble Cloudlink integration ready for cloud monitoring Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
• CAN Bus fully integrates and communicates with leading Inverter brands

Technical Specifications

• Model Hubble AM-10
• Rated Capacity (5HR) 200 Ah
• Nominal Voltage 51.2 V Design
• Capacity 10 KWH Equalized Charge Voltage 55.2 V
• Continuous Charging Current 200A Max.
• Continuous Discharging Current 200A
• C Rating 1 C
• Weight Approx. 89 Kg
• Monitoring Optional Cloudlink
• Parallel Parallel connection up to 8 packs with full communications
• Dimensions (WxDxH) mm 673mm x 618mm x 193mm
• Ports CAN-bus, Battery Link Ports Cells Prismatic
• LiFePO4 Design Life +/- 15 Years Cycle Life Unlimited
• cycles within the Hubble Lithium 10 year warranty. Ts & Cs Apply.
• Certification CE IEC UN38.3
• Outer Package Material White bake lacquer steel case
• Operating Temperature Charging: -10 to +50°C | Humidity: 15% to 75% | Storage: 10 to +50°C
• Protection Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
