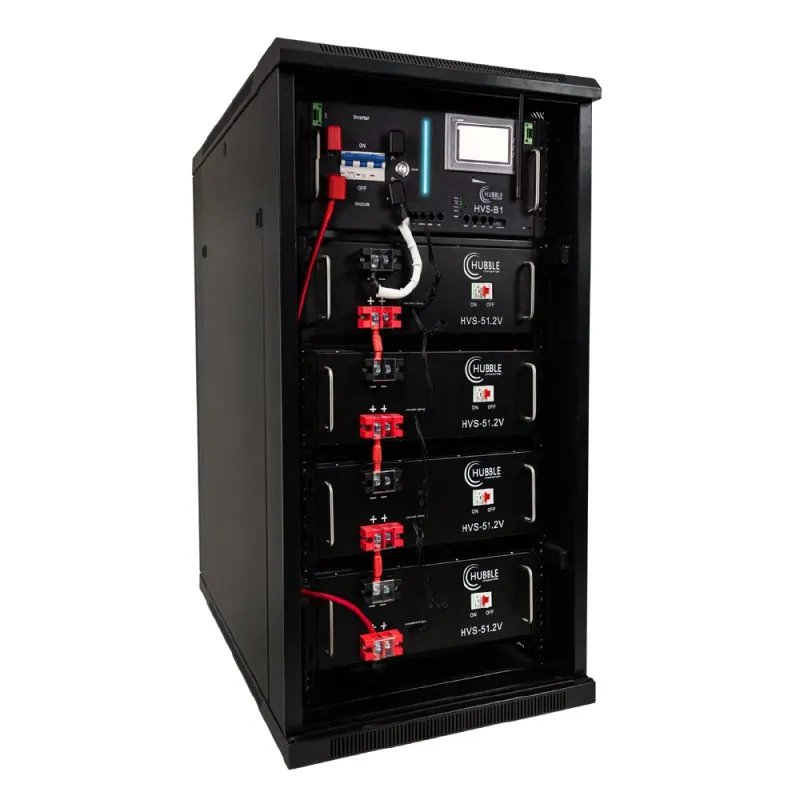

HUBBLE HV-204 High Voltage Battery Rack – 204V / 20.4KW (4 Packs of 16 Cell LiFePO4 Batteries)



🔋 HUBBLE HV‑204 High Voltage Battery Rack (204 V / 20.4 kWh)

The HUBBLE HV‑204 is a premium rack-mount high‑voltage lithium-ion battery system designed to deliver dependable, scalable energy storage for commercial and industrial applications. It consists of four modular packs, each containing sixteen prismatic LiFePO₄ cells, providing high-performance backup, load shifting, or renewable integration support. Ideal for pairing with high-voltage hybrid inverters, this compact system combines power, modularity, and advanced monitoring features.

---

⚙️ Key Features

• Nominal Voltage: 204 V DC
• Usable Capacity: 20.4 kWh (100 Ah at 204 V, 5‑hour rating)
• High C‑Rating: 1C charge/discharge capability—up to 100 A (≈20 kW) continuous.
• Modular Design: 4 packs of 16 cells each, easily rack‑mounted in a standard 22U cabinet.
• Fully Compatible: Works with most high-voltage inverters via CAN-bus communication.
• Expandable: Supports parallel configurations—up to 8 ESS units per string with full communication integration
• Smart Monitoring: Includes an intelligent touch screen and Cloudlink for real-time monitoring and firmware updates over the internet.
• Designed for Durability: 15-year service life, over 6,000 cycles at 80% Depth-of-Discharge, and ~4,000 cycles at 100% DoD.

---

📐 Technical Specifications

• Rated Capacity: 100 Ah (5‑hour rate)
• Voltage Cut-offs: Discharge cutoff at 179 V; equalized charging up to 223 V.
• Continuous Charge/Discharge: Up to 100 A.
• Depth-of-Discharge: Designed for 100% DoD, with long service life at 80% typical.
• Weight: Approximately 230 kg (excluding cabinet).
• Form Factor: Standard 22U cabinet measuring 1200 × 693 × 1102 mm (H × W × D).
• Connectivity: 1 × CAN-bus port, 2 × Battery-Link ports.
• Cells: 64 prismatic LiFePO₄ cells (16 per pack).
• Certifications: CE, UN38.3, GBT31484‑2015, GBT31485‑2015, GBT31486‑2015.
• Thermal Rating: Operates between 0 °C and 55 °C.
• Protection Features: Includes circuit breakers per pack, over/under-voltage detection, temperature limits, and current limiting safeguards.

---

✅ Why Choose HUBBLE HV‑204?

• Scalable & Modular: Start with a single rack and expand as your energy needs grow.
• High Durability: Prismatic LiFePO₄ cells and robust BMS ensure long lifecycle and safety.
• Smart Integration: Cloud monitoring and firmware updates streamline system management.
• Reliable Performance: Suited for high-demand environments including commercial & industrial settings.
• South African Support: Local support, service centres, and compatibility with widely used inverter brands

---

🔍 Field Insights from Users

Rack-mounted high-voltage LiFePO₄ systems like the HV‑204 typically employ a two‑tier BMS architecture: individual cell-level balancing within modules and a master BMS coordinating communication and load management across the rack via CAN-bus. Reddit users note that this ensures stable performance without manual balancing.

---

🧾 Summary Table

Feature	Specification
Rated Capacity	100 Ah @ 204 V (20.4 kWh)
Continuous Power	~20 kW (100 A)
Voltage Cut‑offs	179 V / 223 V
Cabinet Form Factor	22U, 1200 × 693 × 1102 mm
Weight	~230 kg (without cabinet)
Cycle Life	>6,000 @ 80% DoD, ~4,000 @ 100% DoD
Expandability	Up to 8 ESS units in parallel
Communications	CAN-bus, Battery Link, Cloud monitoring
Certifications	CE, UN38.3, GBT safety standards

---

In summary, the HUBBLE HV‑204 battery rack is an efficient, high-performance energy storage system built for commercial and industrial use. Its modular 22U design, smart monitoring, high cycle life, and compatibility with high-voltage inverters make it a reliable choice for demanding installations.
