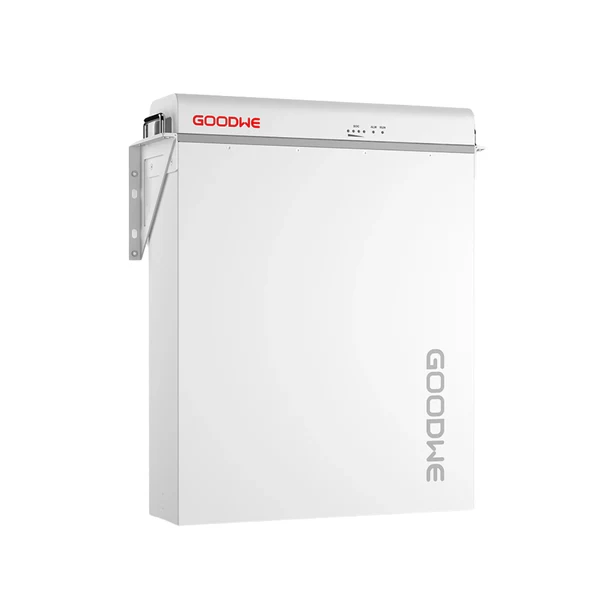

GoodWe’s Lynx A G3 Series is a reliable low-voltage LFP battery designed for residential energy storage. It helps optimize solar self-consumption and provides dependable backup power. Featuring high energy density, a built-in Battery Management System, and support for up to 30 units in parallel, it’s a compact, scalable solution with long cycle life—perfect for lasting home energy efficiency.
Product Features:
- Remote diagnosis and firmware updates via compatible inverter
- Reliable lithium iron phosphate (LFP) battery cells with high cycle stability
- Scalable design supports up to 30 units in parallel (up to 150kWh total capacity)
- Long battery life with over 6000 cycles at 70% end-of-life (EOL) capacity
Specifications:
- Nominal Battery Energy: 5.12 kWh
- Usable Energy: 5 kWh
- Cell Type: LFP (LiFePO₄)
- Operating Voltage Range: 43.20 ~ 58.24 V
- Nominal Charge Current: 60 A
- Max. Continuous Charge Current: 90 A
- Nominal Discharge Current: 100 A
- Max. Continuous Discharge Current: 150 A
- Max. Pulse Discharge Current: <200 A (30 seconds)
- Max. Continuous Discharging Power: 7200 W
- Communication: CAN
- Operating Temperature:
- Charge: 0°C < T ≤ 55°C
- Discharge: -20°C < T ≤ 55°C
- Max. Storage Time: 12 months (maintenance-free)
- Max. Operating Altitude: 4000 m
- Weight: 44 kg
- Dimensions (W × H × D):
- Core part: 442 × 133 × 520 mm
- Maximum: 483 × 133 × 559 mm
- Ingress Protection Rating: IP20
- Applications: On Grid / On Grid + Backup / Off Grid
- Scalability: Up to 30 units in parallel (150 kWh total)
- Hand to hand / Combiner box / Busbar supported
- Mounting Method: 19-inch standard rack, floor-mounted, wall-mounted
- Round-trip Efficiency: ≥96%
- Cycle Life: >6000 cycles @ 25 ± 2°C, 0.5C, 70% SOH, 90% DOD
Certifications:
- Safety: IEC62619, IEC63056, N140
- EMC: EN IEC 61000-6-1 / -6-2 / -6-3 / -6-4
- Transportation: UN38.3, ADR
- Environmental: RoHS
