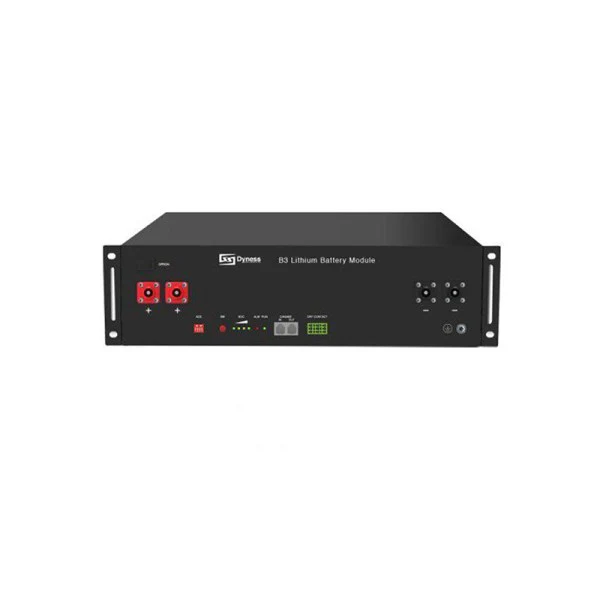

Dyness 3.6kWh 48V Li-Ion Battery

The Dyness B4874 rack mount battery module is widely used in energy storage household energy storage systems;

Intelligent Management:

• Dyness is equipped with  intelligent BMS  for each battery pack to manage modules effectively.
• Compared with the traditional module, B4874 can meet the capacity storage and greatly enhance the cycle life.

Dyness compatability list:

• Victron
• Sacolar (solarway)
• Goodwe
• Imeon
• Solis
• Lux Power
• Sofar
• GMDE
• Growatt
• Voltronic

Specification:

• Nominal Energy: 3.552kWh
• Nominal Capacity: 74Ah
• Nominal Voltage: 48V
• Max. Continuous Discharge Current: 50A
• Max. Continuous Charge Current: 50A
• Charging Cut-Off Vol: 54V
• Discharging End-Off Vol: 40.5V
• Net Weight: 30kg
• Dimensions (W*D*H): 480*360*133.5mm
• Protection Level: IP20
• Calendar Life: 6000 Cycles
• Charging Temperature Range: 0~50ºC
• Discharging Temperature Range: -20~50ºC
• Communication: CAN / RS485
• Configuration: up to 142kWh total energy, 40 modules parallel at most
• Recommend C Rate: 0.5C
• Warranty: 10 years
