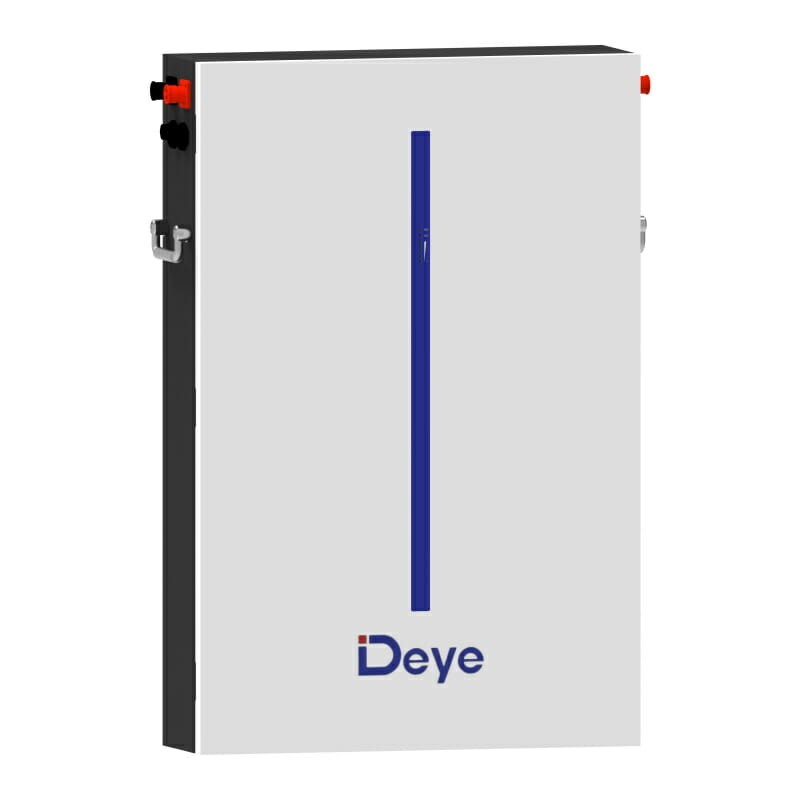

Deye RW-M6.1 LifePO4 Battery – 100AMP / 6.1KWh / LFP

The Deye 6.14 kWh Lithium-Ion Battery from the RW-M6.1 series is a lithium iron phosphate battery developed by Deye. It is an ideal choice for new or existing solar systems due to its 6.1 kWh storage capacity, making it suitable for energy storage.
If you are looking for a solar battery that can work efficiently and last for a long time without needing replacement, Deye lithium batteries are an excellent option.
This lithium-ion battery uses LiFePO4 chemistry and has a depth of discharge of 90%. The price of solar batteries varies based on factors such as the size of your home, the battery type you require, and the level of service you desire.
Deye 48V lithium-ion batteries are rechargeable, allowing you to use them repeatedly. In South Africa, the price of lithium-ion batteries is influenced by several factors, including the price of lithium, manufacturing costs, and battery demand.
The Deye Lithium battery is compatible with Deye inverters and has received approval from Deye.

Features

– Intelligent BMS safeguards the battery from overcharging, overheating, and short-circuiting.
– Safer and cobalt-free Lithium Iron Phosphate (LFP) solar battery.
– High efficiency, high power density, safety, and long lifespan.
– Convenient auto networking and automatic IP addressing.
– Certified for use with Sunsynk and Deye inverters.
– USB drive firmware can be easily updated.
– Flexible: Can expand to 32 units, 196 kWh maximum capacity.
– The auto networking and automatic IP addressing features make it even more convenient to use.

Specifications

Technical Data

– Model: RW-M6.1
– Deye Low Voltage Wall-Mounted Battery
– Rechargeable battery type: Deye 6.14kWh Battery

Main Parameters

– Battery Chemistry: LiFePO4
– Capacity: 120Ah
– Scalability (maximum in 1 battery group): Max. 32 in parallel (196kWh)
– Nominal Voltage: 51.2V
– Operating Voltage: 43.2~57.6V
– Energy: 6.14kWh
– Usable Energy [1]: 5.53kWh

Charge/Discharge Current

– Peak (2 mins, 25°C): 150A
– Recommended [2]: 60A
– Maximum [2]: 100A

Other Parameters

– Recommended Depth of Discharge: 90%
– Dimensions (W/H/D): 460×720×143mm
– Approximate Weight: 55kg
– Master LED Indicator: 5LED(SOC:20%~100%), 3LED (working, alarming, and protecting)
– IP Rating of Enclosure: IP65
– Cycle Life: 25°C±2°C, 0.5C/0.5C, 70%EOL 6000
– Installation: Wall-Mounted or Floor-Mounted
– Communication Port: CAN2.0 and RS485
– Warranty: 10 years
– Life Cycle Power During Warranty Period [3]: 20MWh @ 70%EOL
– Certifications: UL1973, FCC, IEC62619, CE, UN38.3
