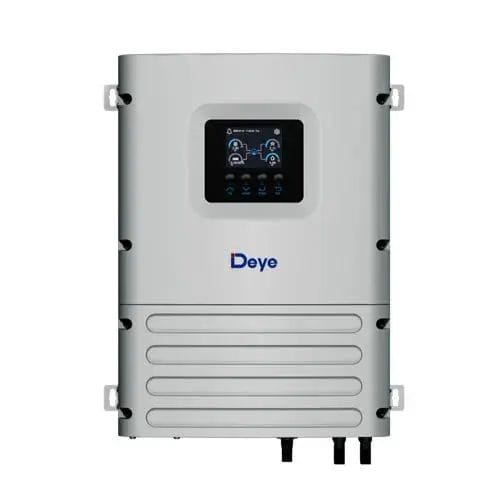

Deye 6KW Single Phase Off-Grid Hybrid Inverter(SUN-6K-OG01LP1-EU-AM)

Deye 6KW Single Phase Off-Grid Hybrid Inverter(SUN-6K-OG01LP1-EU-AM)

Colorful touch LCD, IP65 protection degree

AC couple to retrofit existing solar system

Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel

Max. charging/discharging current of 135A

Support storing energy from diesel generator

PV String Input Data

Max. PV Access Power (W) 12000

Max. PV Input Power (W) 9600

Max. PV Input Voltage (V) 500

Start-up Voltage (V) 125

MPPT Voltage Range (V) 150-425

Rated PV Input Voltage (V) 370

Max. Operating PV Input Current (A) 18+18

Max. Input Short-Circuit Current (A) 27+27

No. of MPP Trackers/      2/1+1
No. of Strings MPP Tracker

AC Input/Output Data

Rated AC Input/Output Active Power (W) 6000

Max. AC Input/Output Apparent Power (VA) 6000

Rated AC Input/Output Current (A) 27.3/26.1

Max. AC Input/Output Current (A) 27.3/26.1

Dimensions:

35.5cm X 63.5cm X 47.5cm

Warranty

5 Years/10 Years
